12v / 24v 11000 BTU RV Rooftop Air Conditioner
12v / 24v 11000 BTU RV Rooftop Air Conditioner
- DC powered for ideal off-grid cooling from your battery bank
- Ideal cooling capacity for small-to-medium vehicles (vans, campers, single RV bedrooms)
- Choose from Turbo, Auto, Eco, and Sleep for flexible comfort control.
- Designed for quiet operation, energy efficiency, and a long lifespan.
- Easy Installation: Designed for a simple, fast DIY setup.
Couldn't load pickup availability
Estimated Delivery Times
- California & Nearby Western States (AZ, NV): 2-3 business days
- Most Western & Central U.S. States: 3-4 business days
- Eastern U.S. States: 4-5 business days
Check Your Vehicle Compatibility
-
Vehicle Size
This RV AC unit is ideal for small to medium-sized spaces. It's a great fit for a camper or van under 20 feet or as a cooling solution for a single bedroom in a larger RV.
-
Battery Type
We highly recommend using a Lithium (LiFePO4) battery bank for this AC unit.
- Lithium (LiFePO4): Can be safely discharged to 20% or less, providing nearly full capacity.
- AGM / Lead-Acid: Should only be discharged to about 50% to prevent permanent damage.
A 100Ah Lithium battery provides approximately twice the usable power compared to a 100Ah AGM battery for running the AC unit.
-
Battery Bank Capacity
12V Model
- Current Draw: Draws about 62 amps on Max mode and 32 amps on ECO mode.
- Recommended Capacity: We recommend a 300 Ah battery bank or larger for reliable off-grid use.
- Example Run Time: A single 100 Ah lithium battery will run the unit for approximately 2.5 hours.
24V Model
- Current Draw: Draws half the current of the 12V model.
- Run Time Benefit: Using a 24V bank of the same capacity effectively doubles your total time.
-
Connection to Power
The 12V AC unit draws around 62 amps when running in Max mode. You can connect the AC unit directly to your battery bank or a bus bar, as long as the bus bar is rated to handle this amount of current.
-

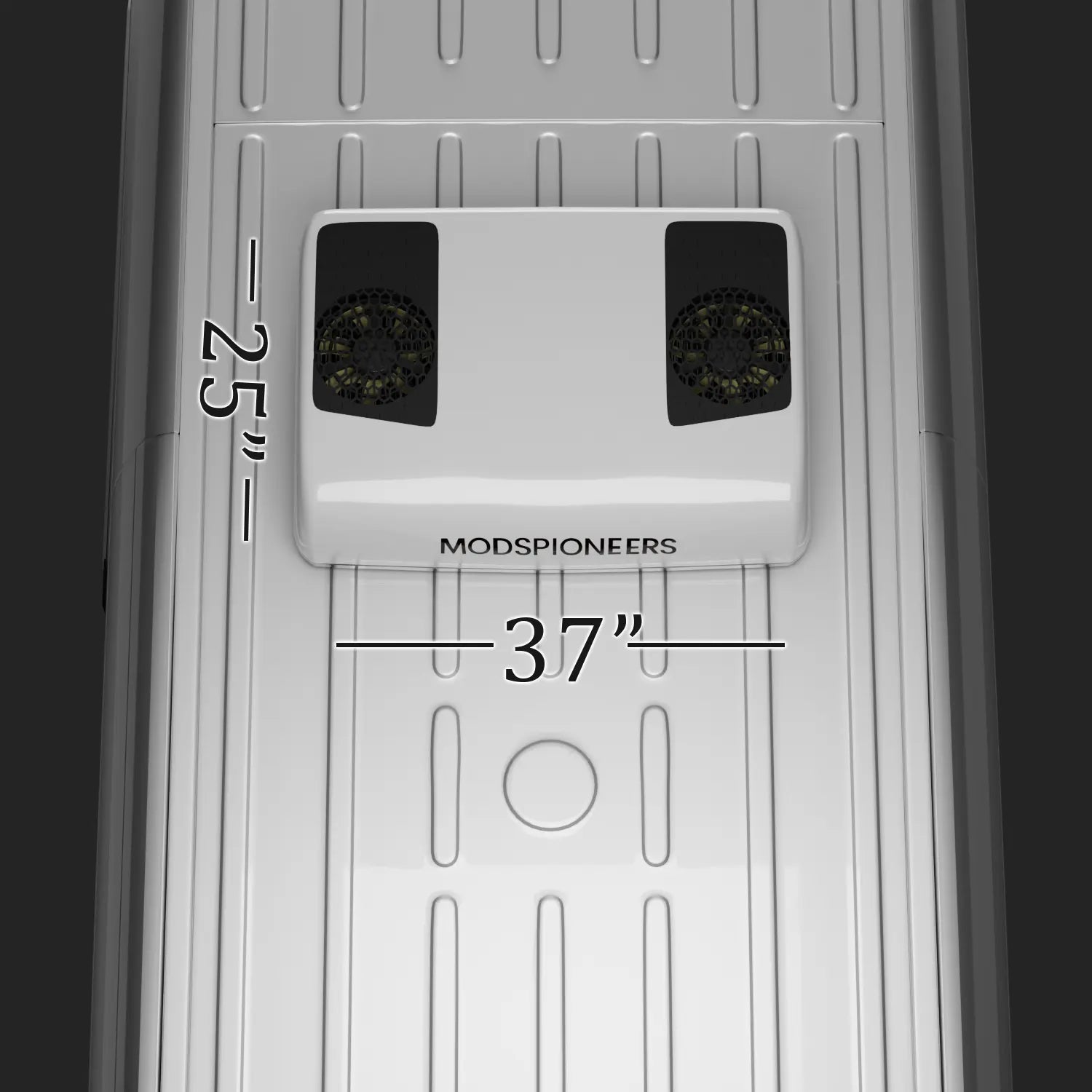

Roof Space
- Unit Dimensions (L x W): 24.9" x 37"
- Unit Height: Under 7.5"
- Roof Opening Size: Fits a standard 14.25" x 14.25" roof vent

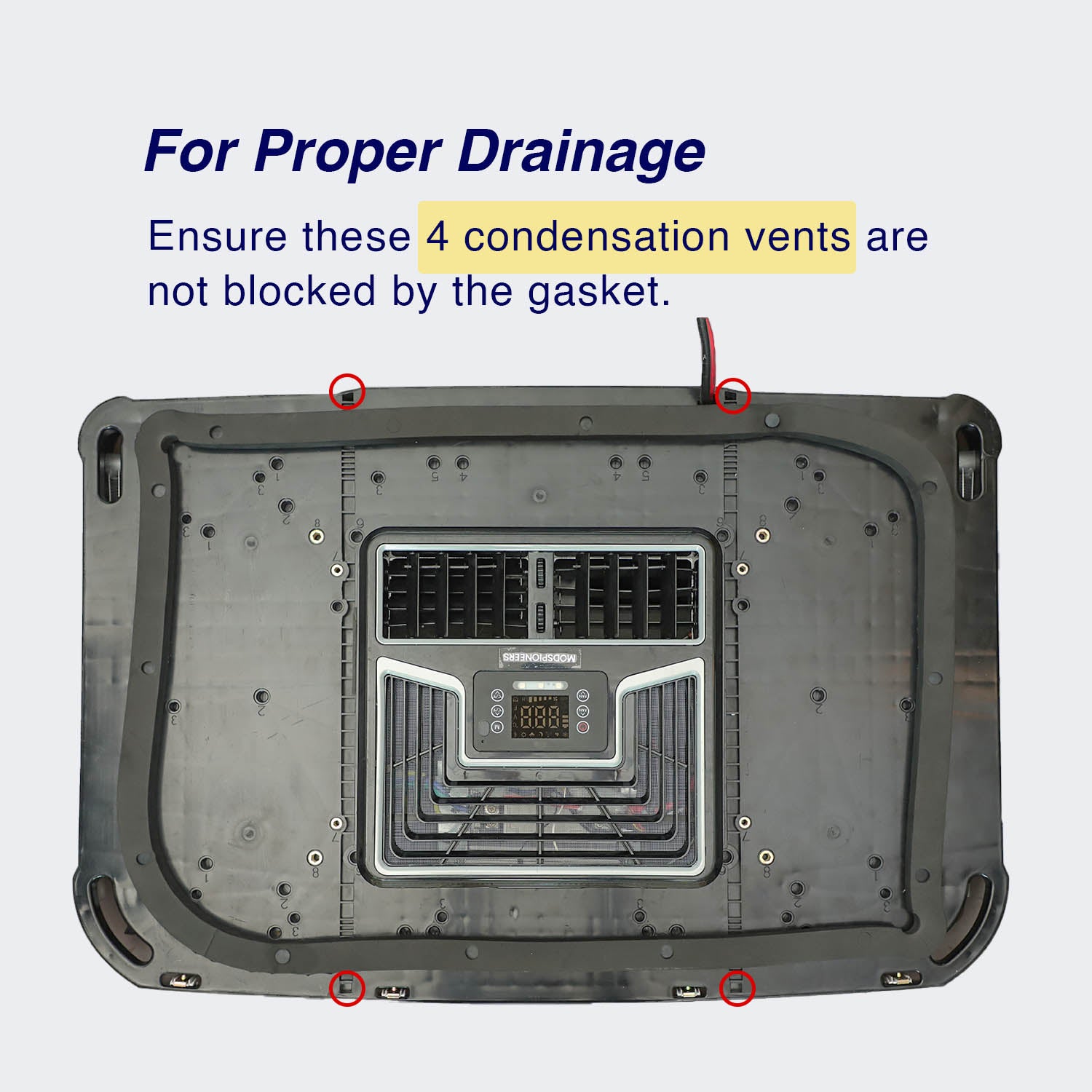

- Installation Surface: Must be installed on a flat roof to ensure proper condensation drainage
-

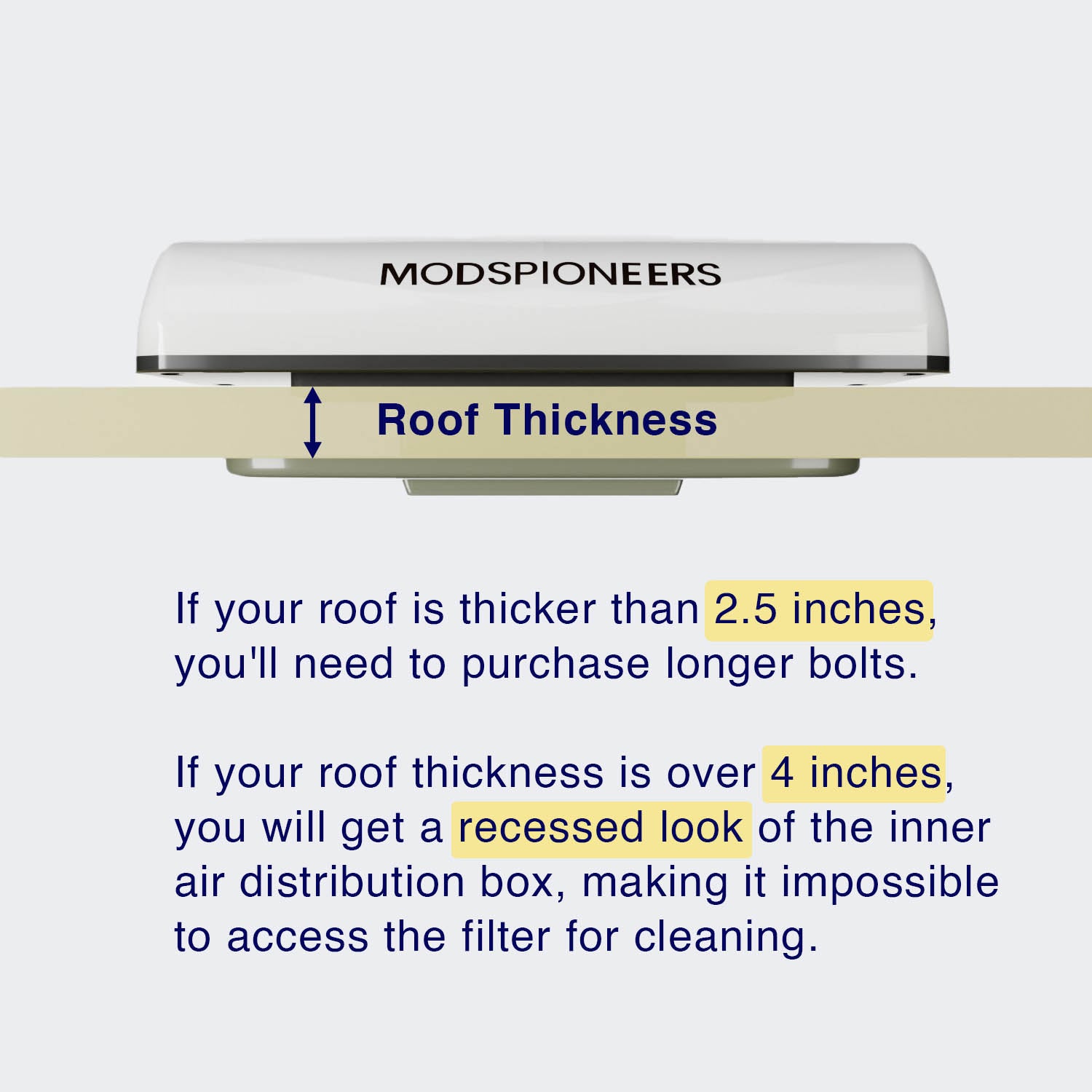

Roof Thickness
- Standard Thickness: The included mounting bolts fit a roof thickness of $2.5" or less.
- Thicker Roofs: If your roof is thicker than 2.5", longer bolts must be purchased.
- Maximum Recommended Thickness: If the roof is over 4", the inner air distribution box will be recessed, making it impossible to access the filter for cleaning.
Check Your Roof Thickness
Please enter your RV's roof thickness (measured from the rooftop to the ceiling): inches.
AC Unit Dimensions
-

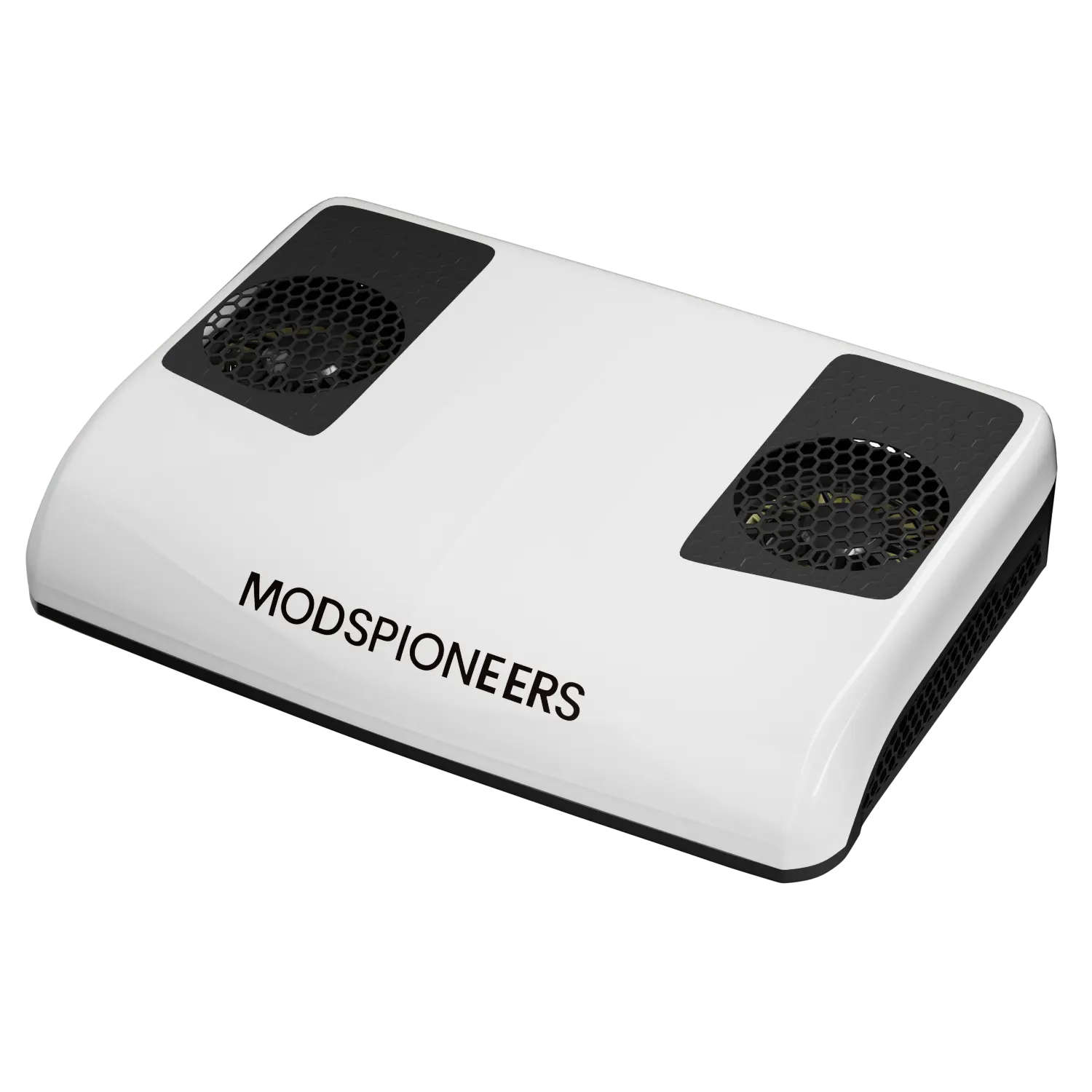

Rooftop unit
-
Rooftop unit
-

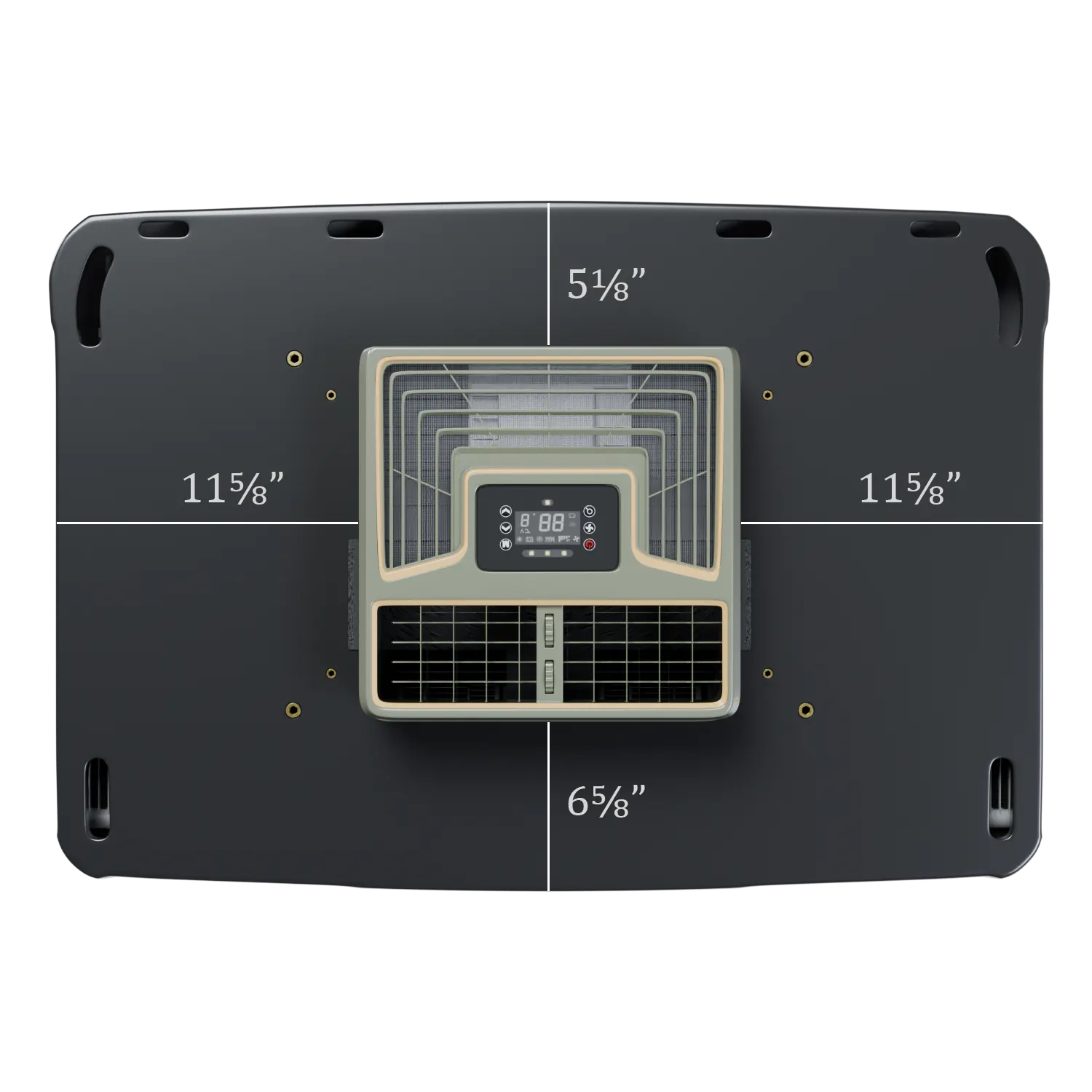

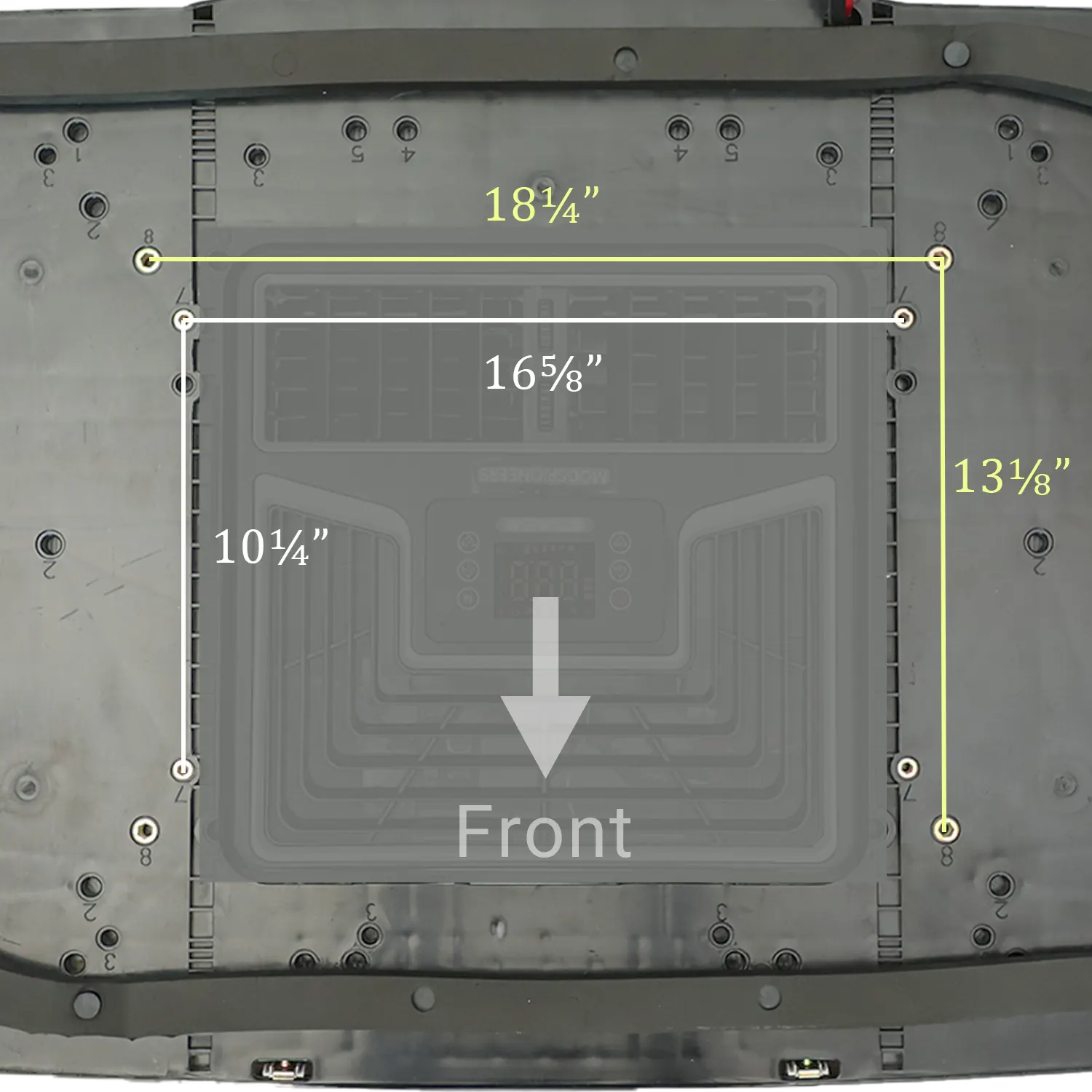

Distances of mounting studs
-

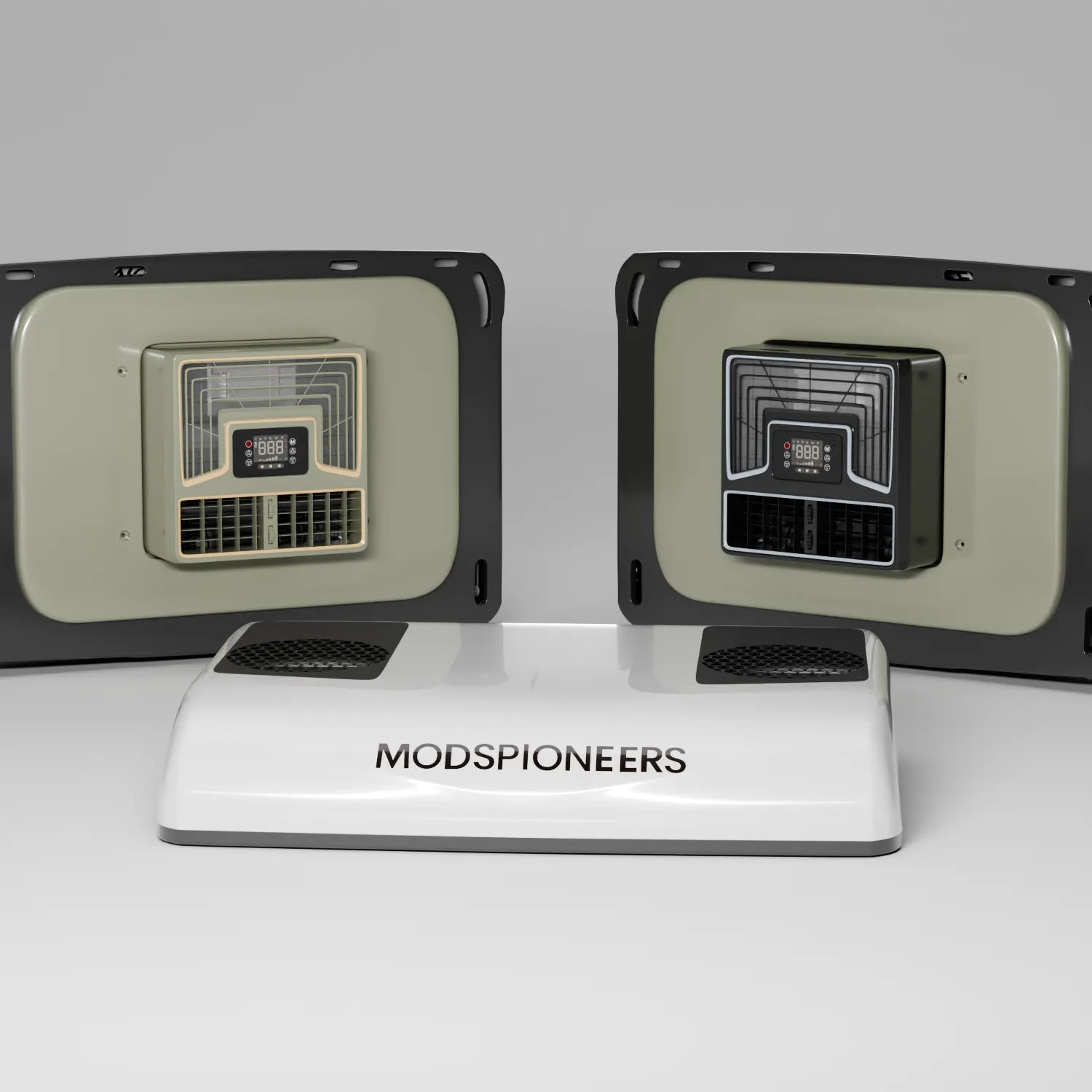

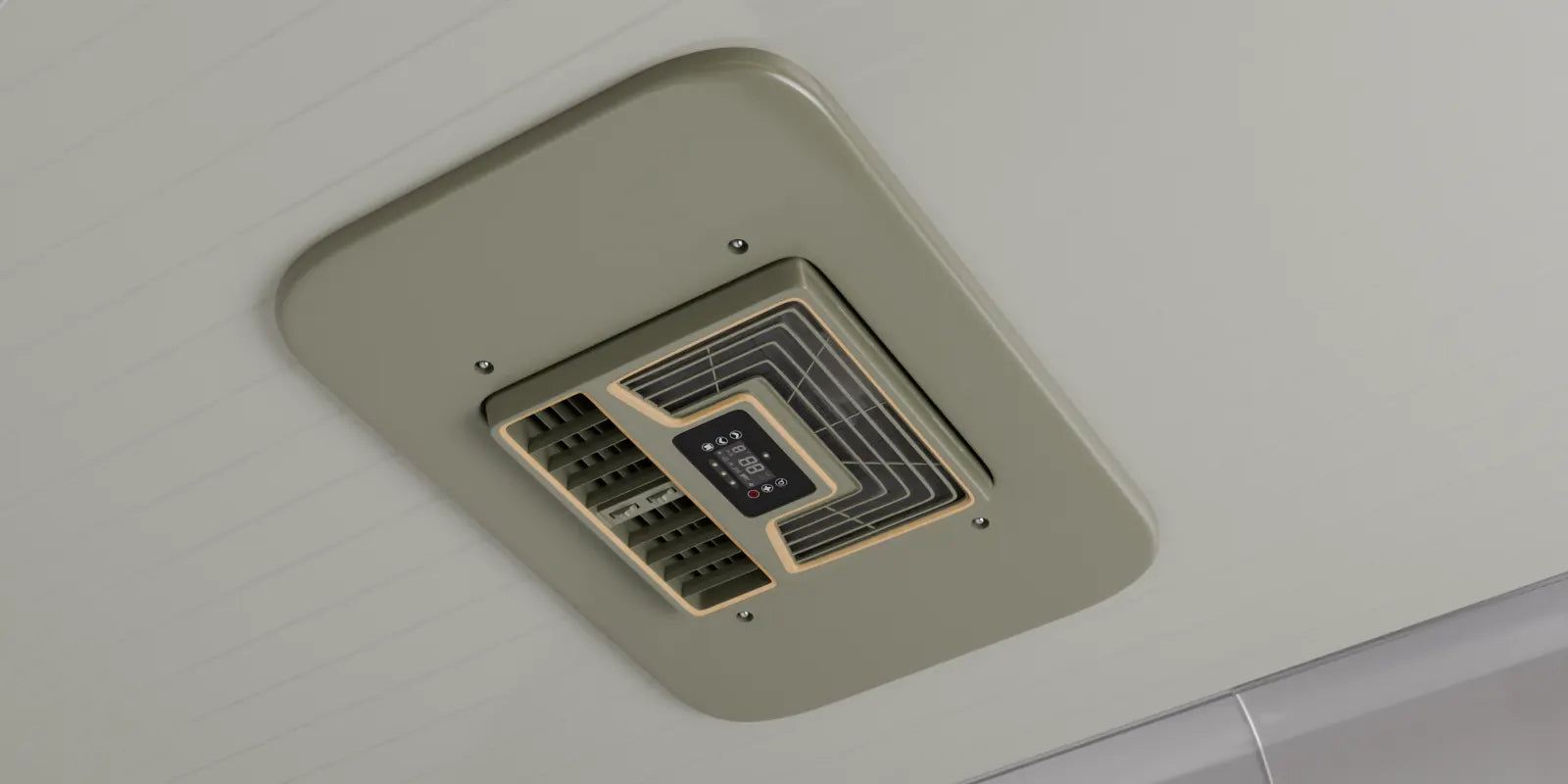

Air Distribution Box
-
Decorative plate
Power requirement
-
Off-gird
To use our 12V AC unit off-grid, we recommend a 12V battery bank with a capacity of at least 300Ah for regular use. Connect it directly to a busbar or battery bank, as the unit draws around 62 amps in its maximum mode.
-
On-grid
For on-grid operation, we recommend a 120V to 12V converter with an output of at least 80A.
12V vs 120V
| DC 12v / 24v | AC 120v | |
|---|---|---|
| Cooling Capacity | ||
| Cooling Capacity | Small-to-medium space | Large space |
| Noise level | ||
| Noise level | Low | High |
| Off-grid | ||
| Off-grid | High efficiency | Need an inverter (Low effieiency) |
| Softer starter | ||
| Softer starter | No need | Need |
| Heat pump | ||
| Heat pump | No | Yes |

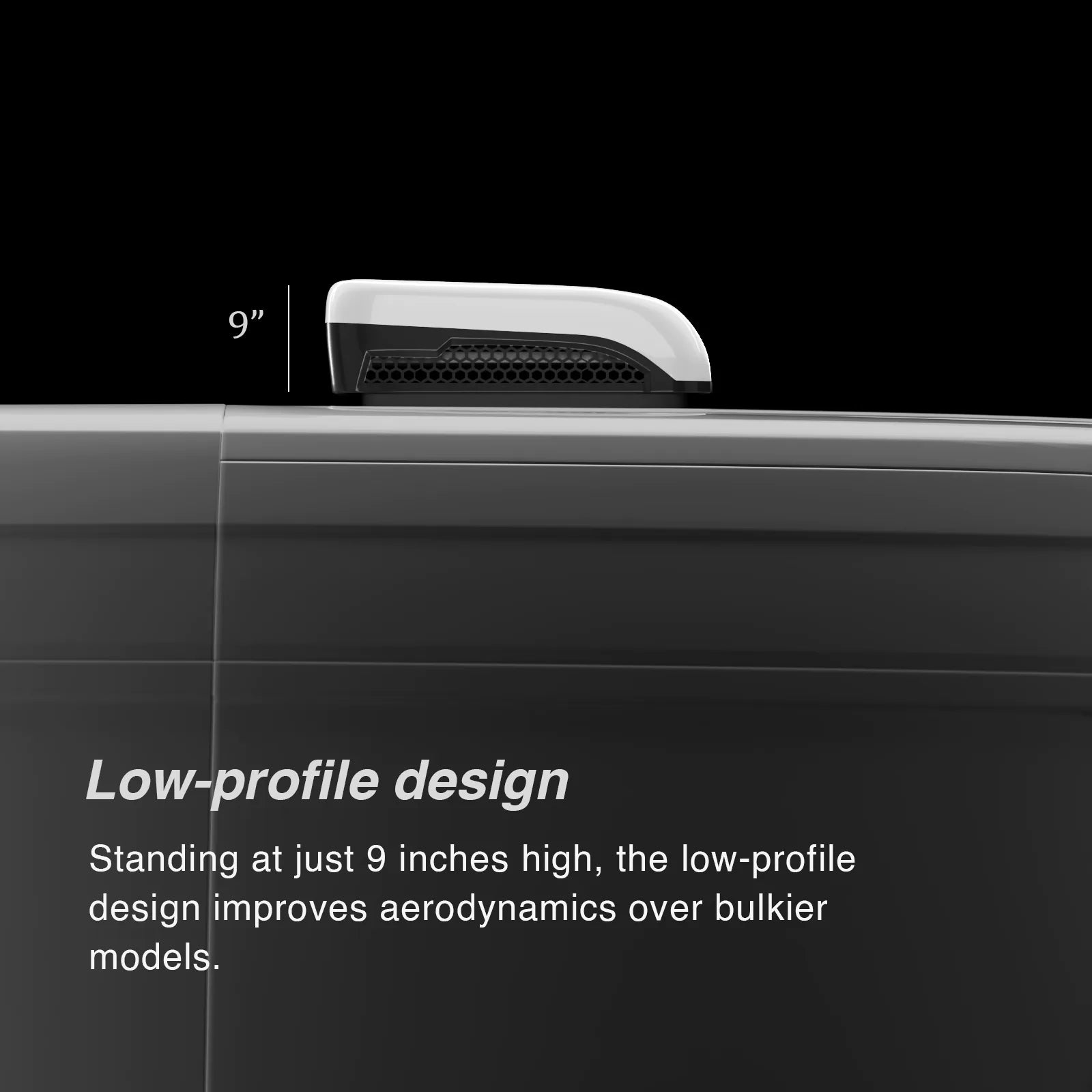

| Low profile | ||
| Low profile | Yes | No |
Product Features

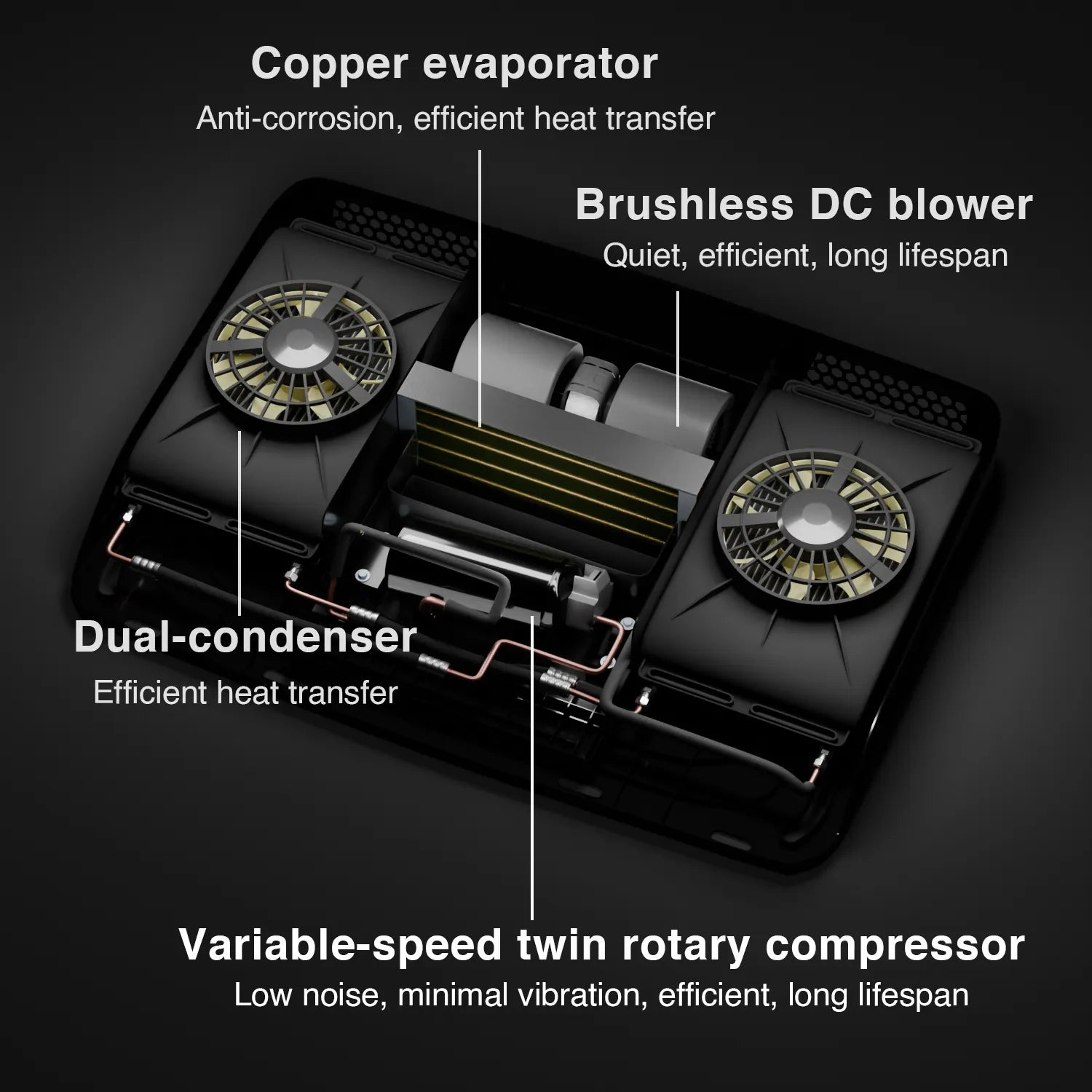

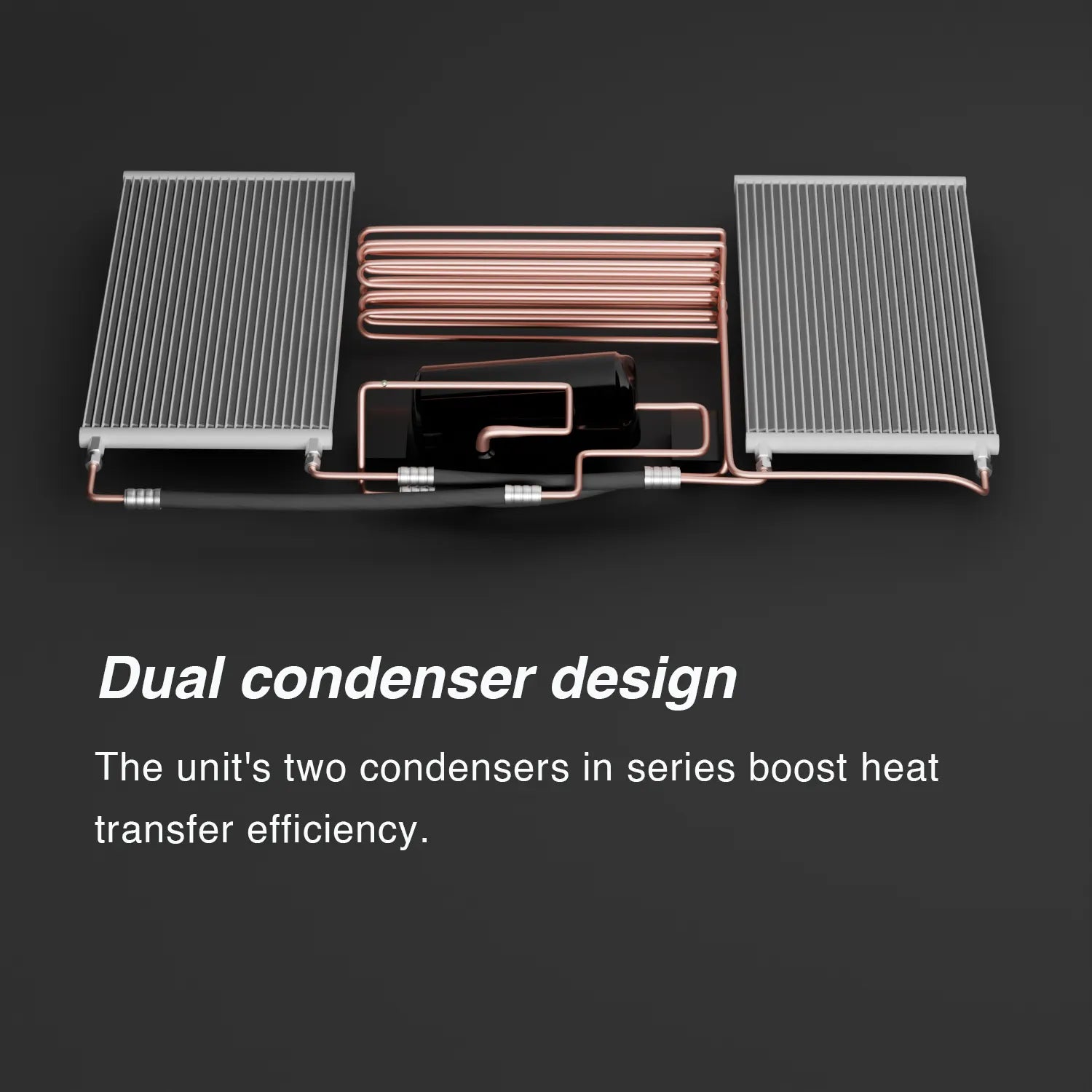

Efficient 12V AC unit with Dual Condensers
Featuring a dual condenser system, this unit maximizes efficiency for fast comfort, providing around 10 hours of runtime on a 300Ah battery or roughly 20 hours on a 600Ah bank, making it ideal for off-grid adventures.

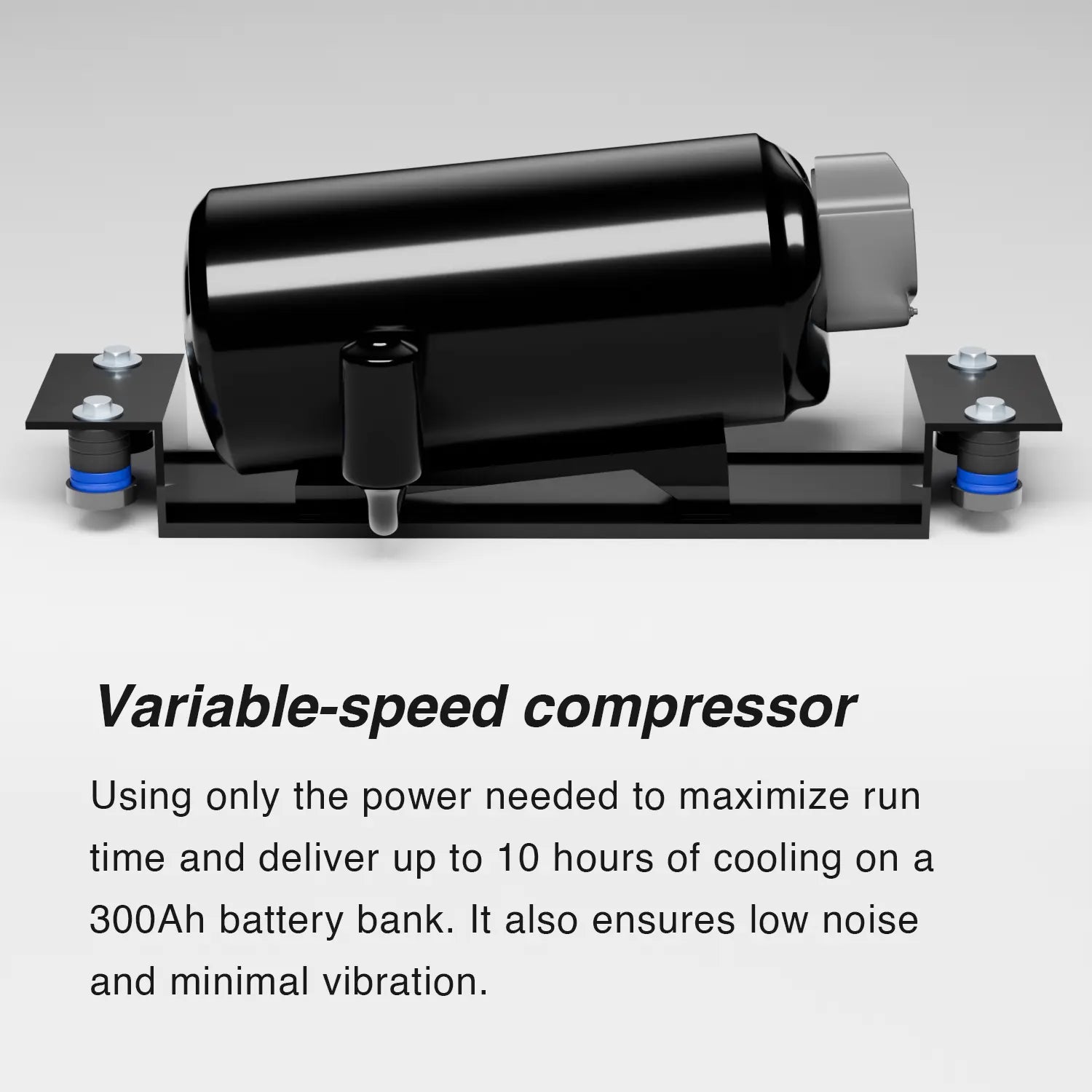

Utilizing Inverter Technology Lowers Energy Consumption
In Auto Mode, our 12v/24v RV AC unit intelligently adjusts the compressor speed to maintain your desired temperature while maximizing energy efficiency. When you need quick relief, Max Mode activates the compressor's full power for rapid cooling.
Low-noise, twin rotary compressor
Operating at an average of 52 dB. Our system is equipped with a high-performance twin rotary compressor and shock-absorbing copper pipes. This combination significantly reduces vibration and noise, allowing for powerful cooling while you enjoy a peaceful environment.

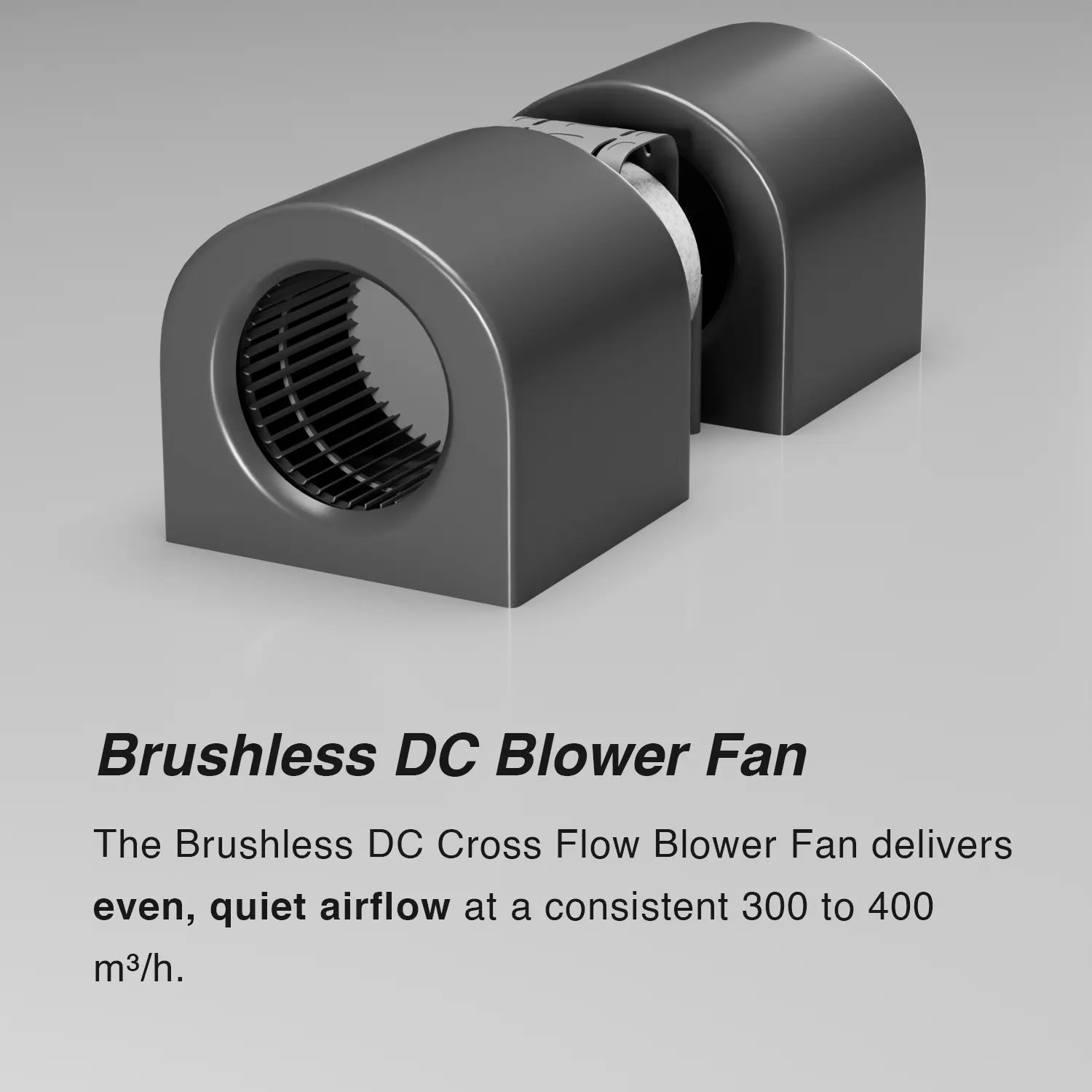

Powered by Brushless DC Fan Motors
The blower and condenser fans in this unit utilize advanced brushless DC motors. These motors are known for their smooth and quiet operation, ensuring that air is efficiently circulated and heat is dissipated with minimal noise, providing you with silent comfort both day and night.

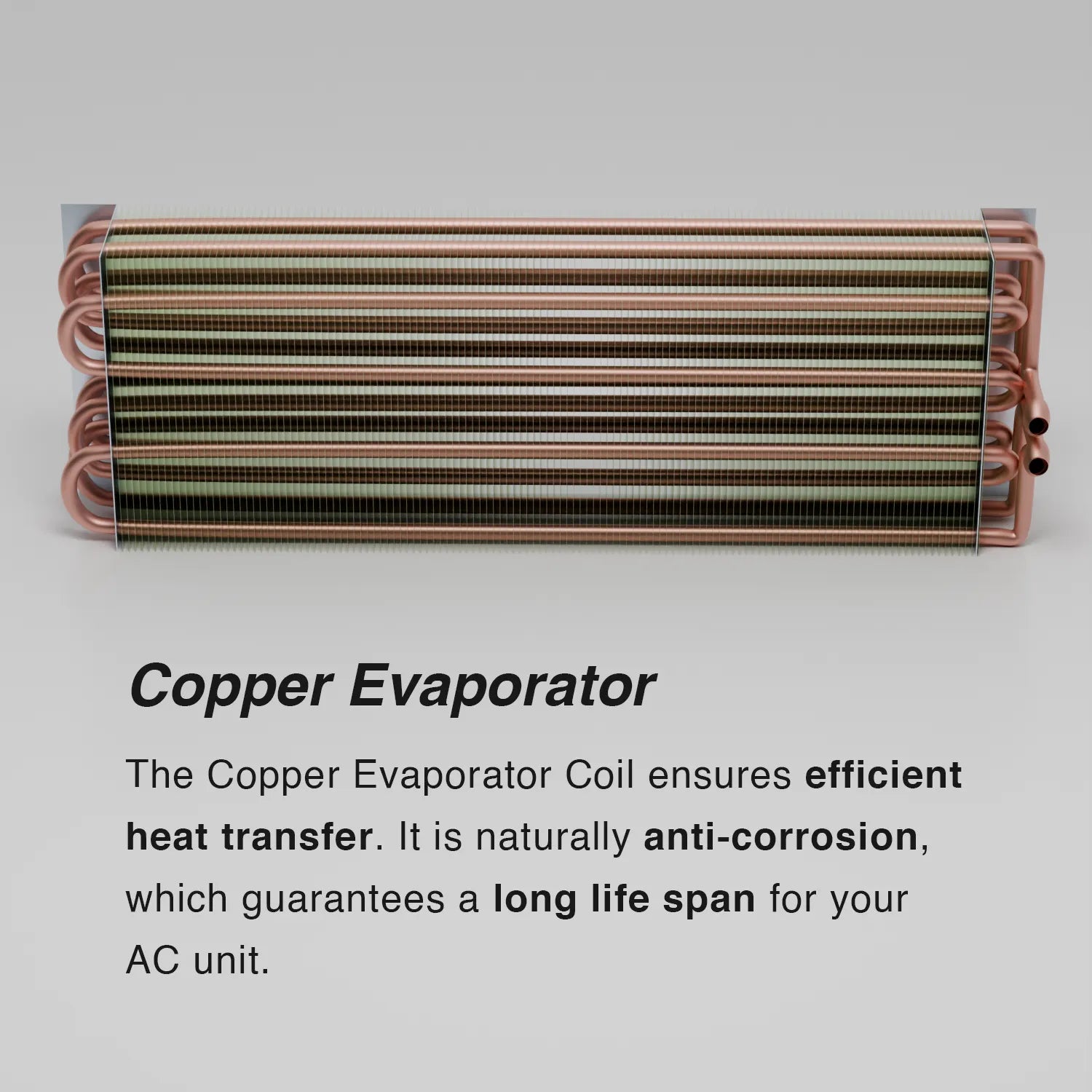

Durable copper pipes
Choose an 12v AC system with copper pipes for excellent cooling performance. Copper pipes are durable and resist corrosion, ensuring years of reliable operation.
Built to Endure Any Journey
Encased in a robust ABS shell, our 12V RV air conditioner resists impacts, UV rays, and extreme weather, ensuring reliable cooling on every rugged adventure.
Customer RV AC Installations
-

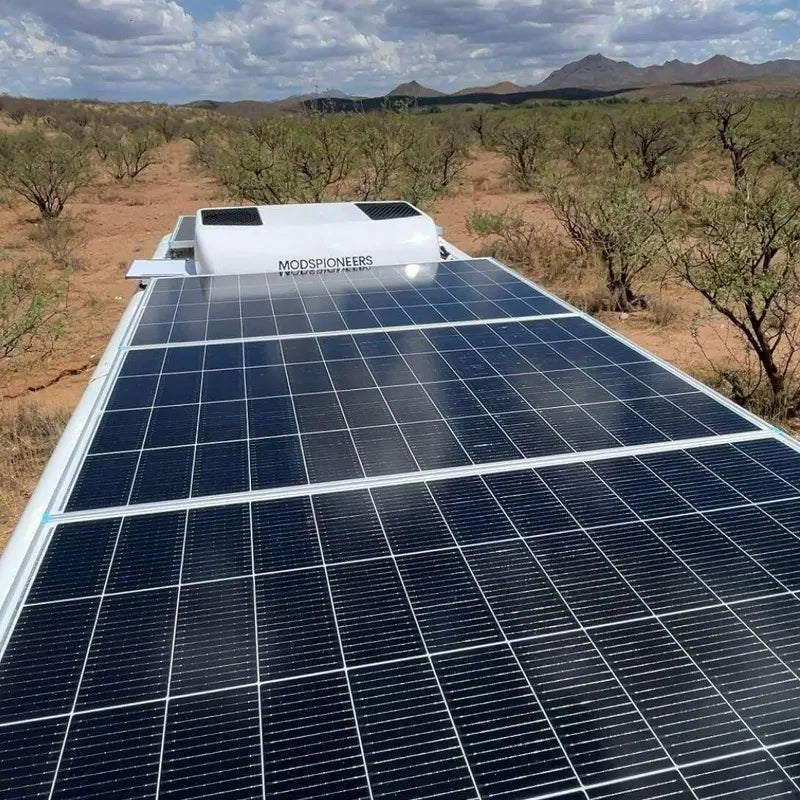

On a Camper
-

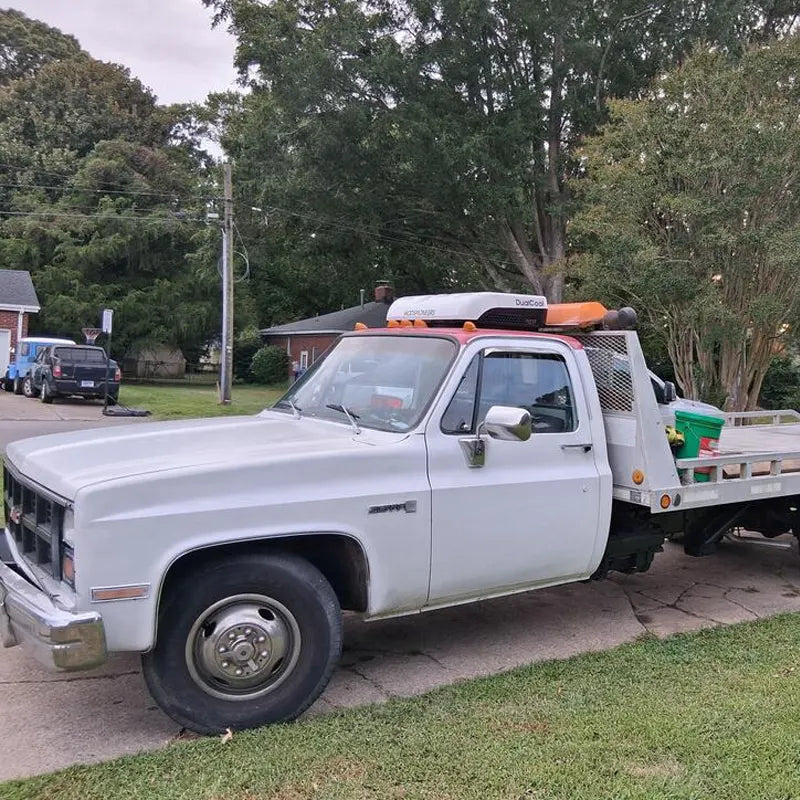

On a Truck
-

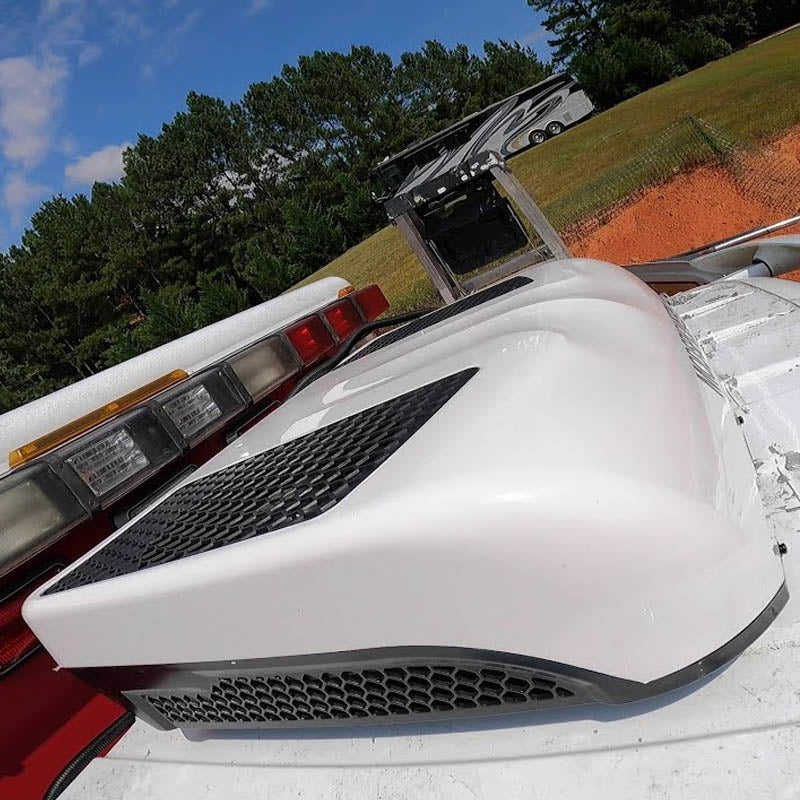

On a Fire Rescue Truck
-

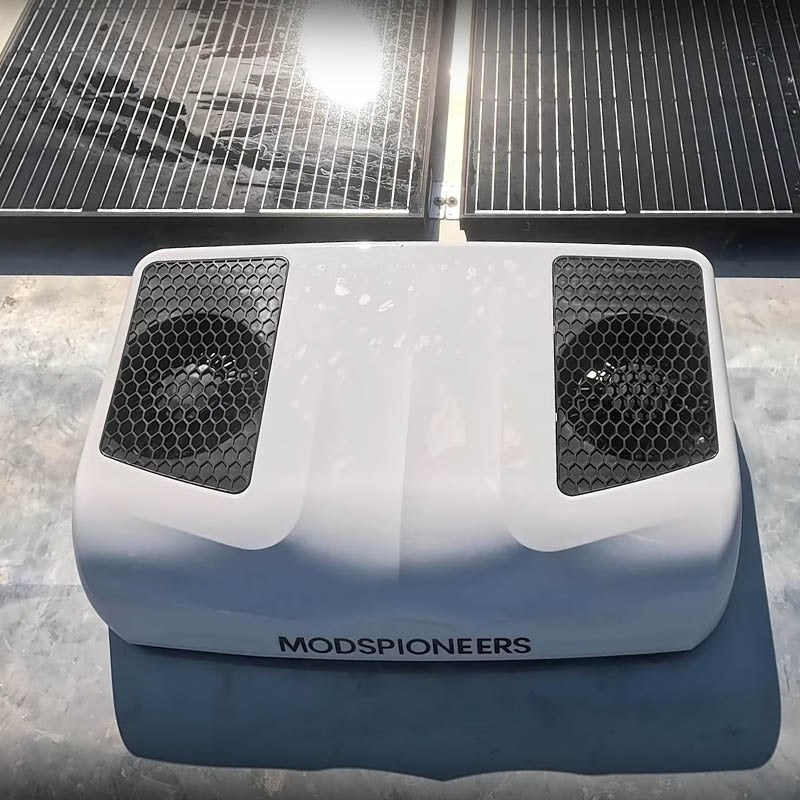

On a Trailer
-

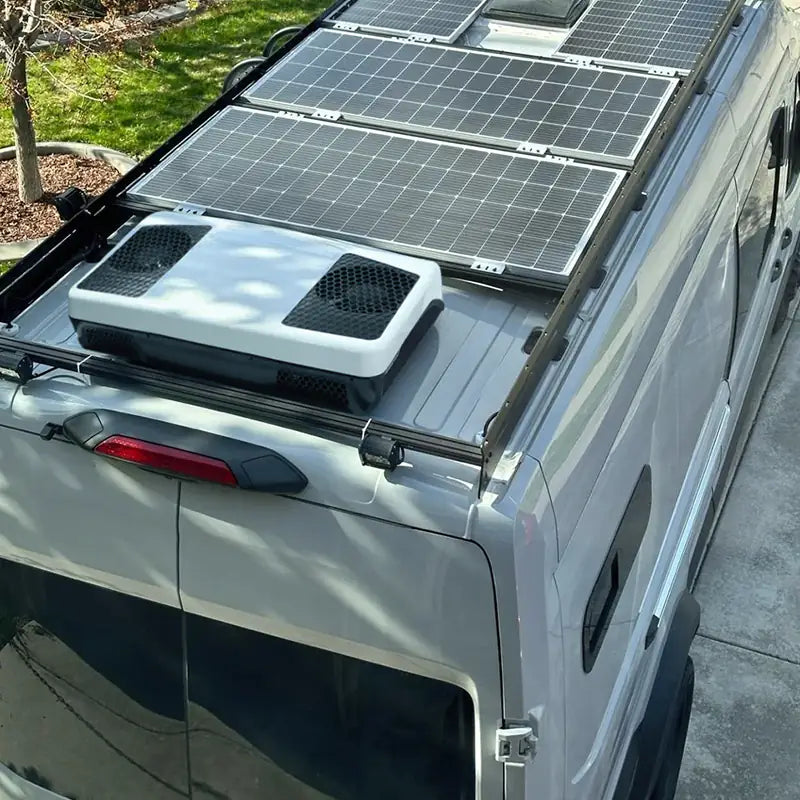

On a Van
-

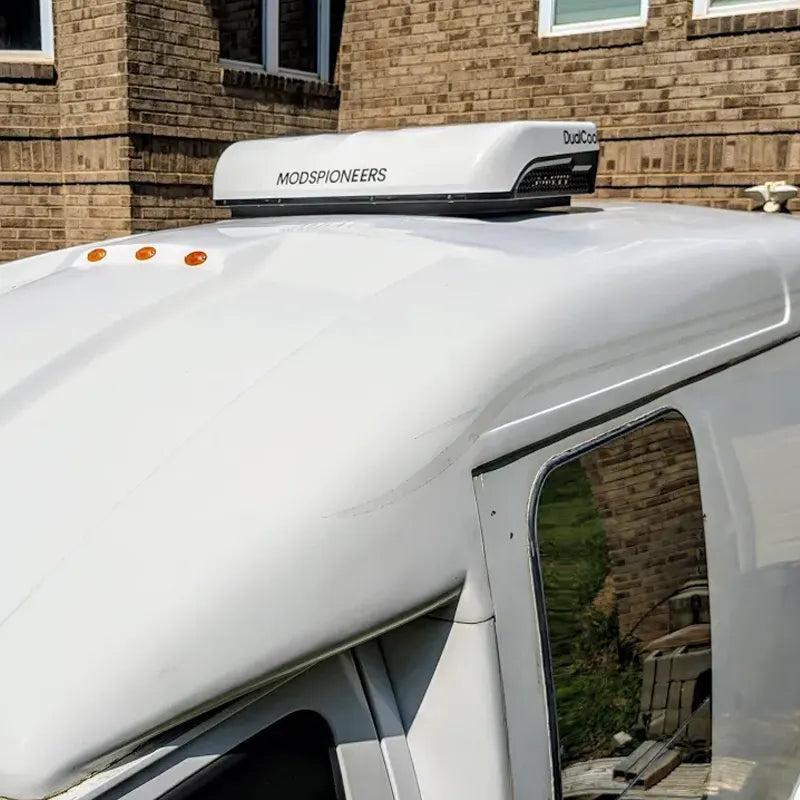

On a Shuttle Bus
Customers are saying
Specifications
electrical
Voltage
DC 12 / 24
Amperage
20-66

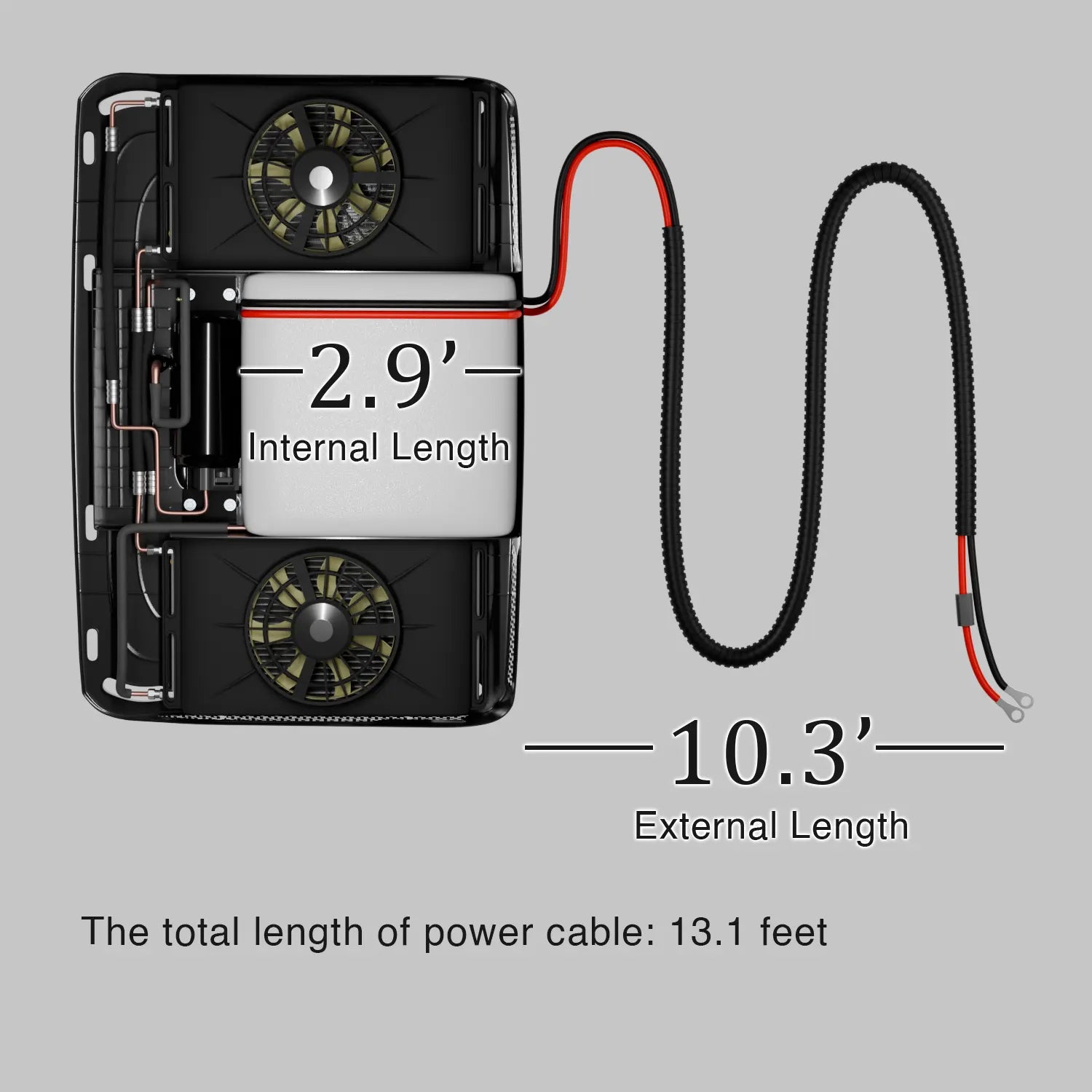

Total cable length
13.1ft
Internal cable length
2.85ft
External cable length
10.27ft
BTU cooling rating
5000 - 11000
BTU heating rating
No heat
Refrigerant(prefilled)
R-410A 630g
Weight
70lbs
performance
Modes
Max/Auto/Eco/Fan
Air direction
4-way
Number of fan speeds
3 Speeds
Heater included
without heater
Decibel (sound) rating
52dBA

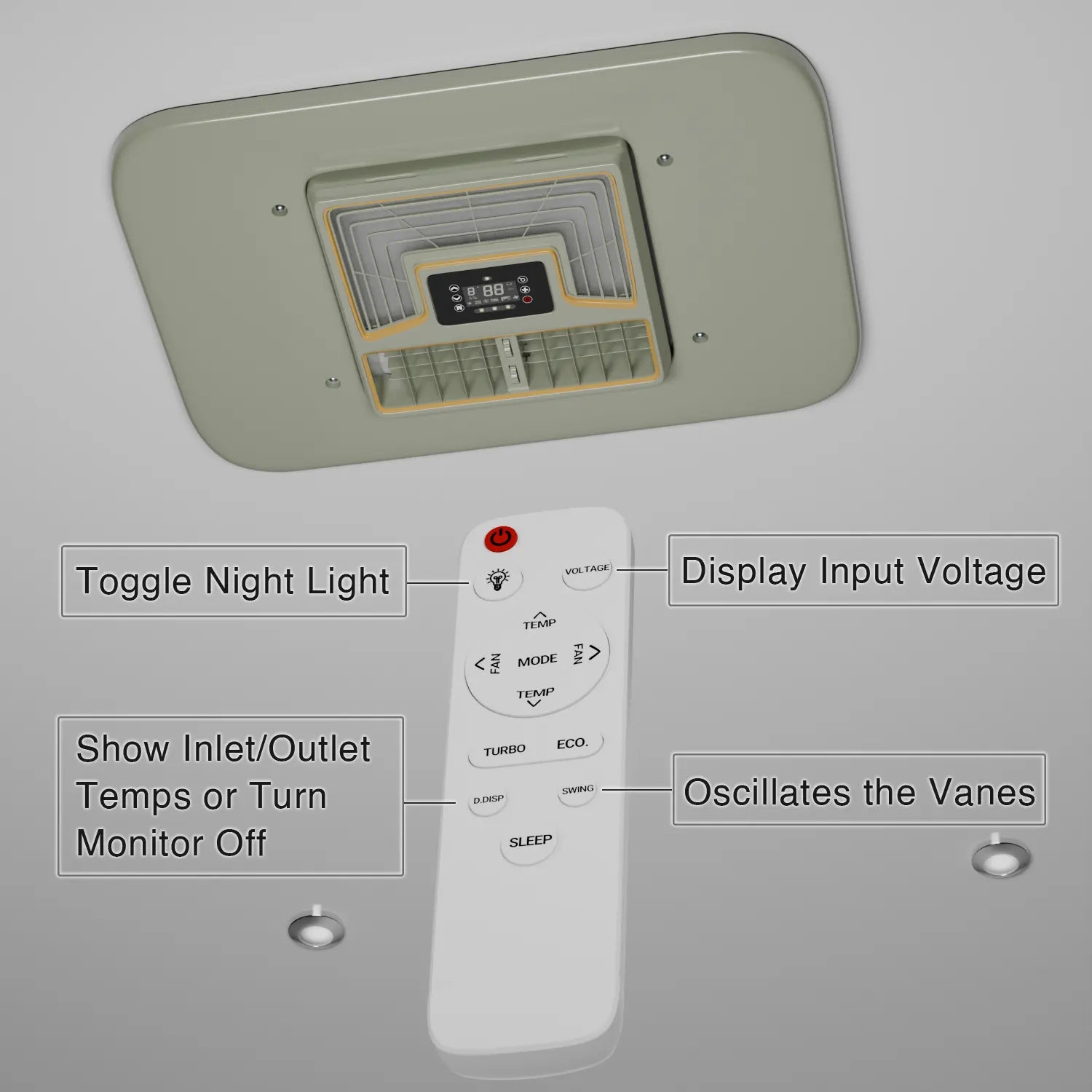

Control type
remote control

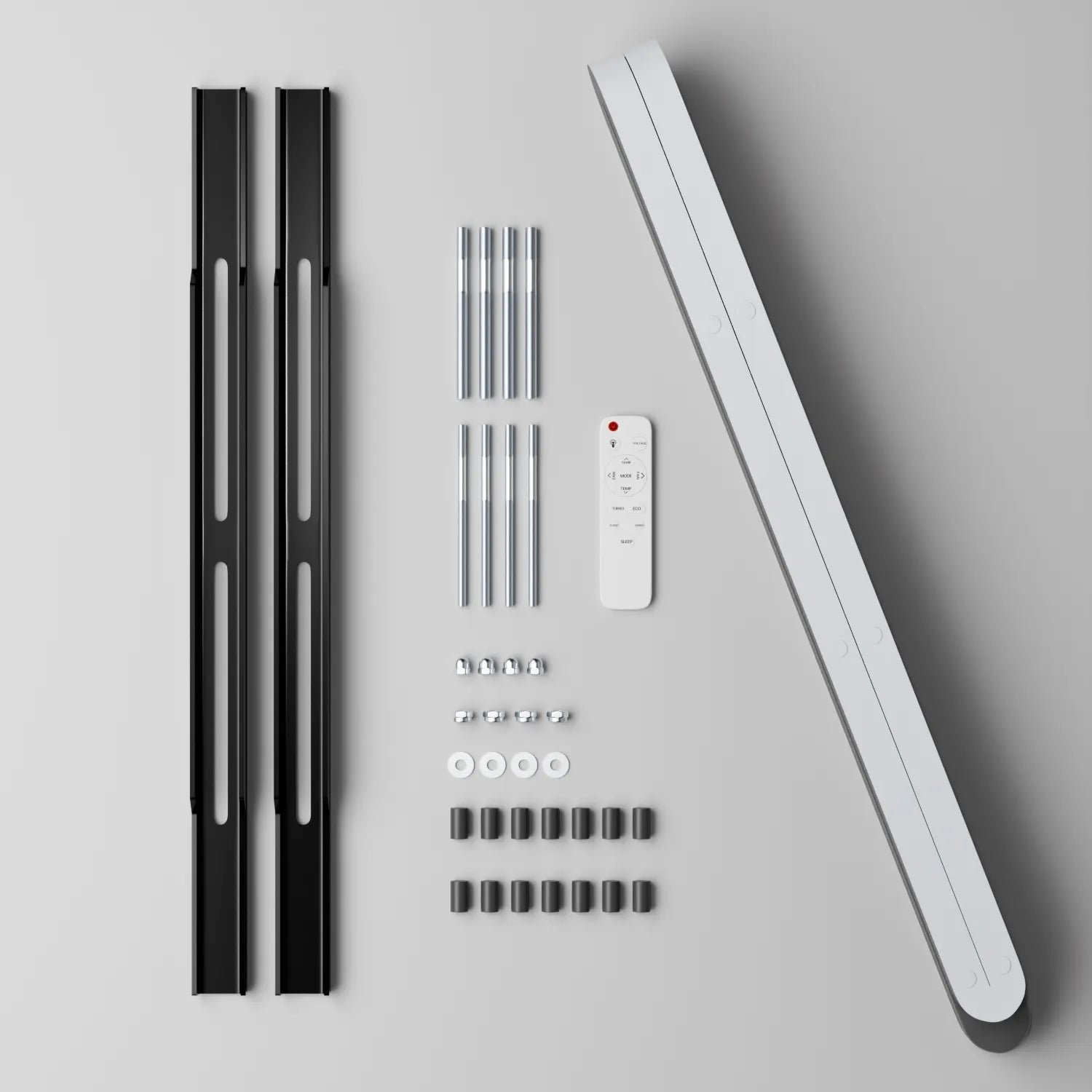

accessories
Mounting brackets
2
Mounting hardware
1 pack
Foam gasket
1
Remote control
1
User manual
1

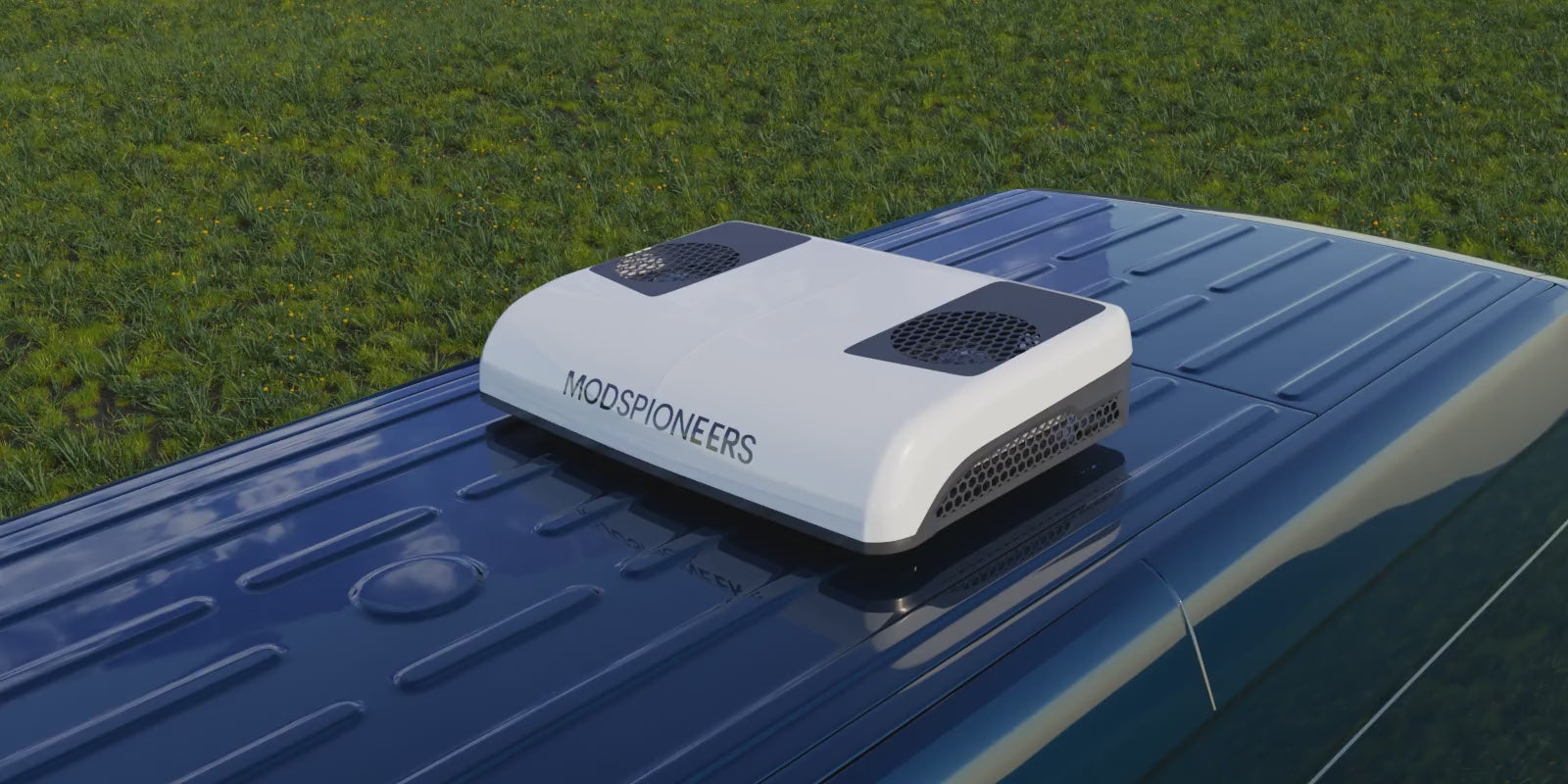

Youtube Videos
ACTUALlY FREQUENTLY ASKED
Frequently Asked Questions
What are the recommended wire gauge and fuse size for the AC unit?
The 12V model comes with a pre-connected 6AWG power cable and a 100A in-line fuse, its total length is 13.1 feet, with 2.85 feet inside the AC unit and the remaining 10.27 feet extending from the bottom of the unit. For the 24V model, the wire gauge is 8AWG. You can connect it directly to your battery bank or to a bus bar rated for 60-70 amps. In most cases, you won't need to purchase a power cable separately.
What's the recommended battery capacity?
A single 12.8V 100Ah lithium battery can run the 12V AC model for about 2 to 3 hours. However, for regular off-grid use, we recommend a 300Ah lithium battery bank to ensure you have plenty of power for continuous cooling and all your other needs.
Can the AC unit be installed on a slanted roof?
Yes, the unit can be installed on a slanted roof, but for proper condensation drainage, the angle must not exceed 15 degrees.
What are the roof thickness requirements for installation?
There are two requirements to consider regarding your RV's roof thickness. First, the included mounting rods are for roofs up to 2.5 inches thick. If your roof is thicker, you'll need to use longer rods. Second, the height from the top of your roof to the bottom of your ceiling must not exceed 4 inches to allow access to the air filter for cleaning.
Let's Talk About Your Off-Grid Cooling Needs
